Specification Port Connector Size Ø30 mm standard port (Up to Ø18 mm fibre core diameter) Fibre Type PMMA / Glass Material Black Hard Anodized Aluminium Mains Supply Voltage 110-240V / 50-60Hz Total Power Consumption 42 W LED Power Consumption 39 W LED Lifetime (L80) > 66,000 hours LED Driver Lifetime ≥ 50,000 hours Control System 0/1-10V, DALI/DALI-2, PWM, PUSH (Casambi, DMX, Zigbee, D4i and Pot. upon request) Thermal Protection Automatic resettable Protection Rating IP20 Cooling System Active Fan Cooling Cooling system lifetime 70,000 hours at 40°C Fan Noise Level ≤ 10 dB Ambient Temperature -10°C to 45°C Applied LED Cree CCT (Nominal) 3000K CRI (Ra) Typical Value 98 Weight 1.1 kg
FL 1050 B-2M 3000K CRI 98
Premium Light Generator Delivering Ultra-High CRI and Superior Performance for Fiber Optic Applications
The FL 1050 B-2 Series is a premium light generator engineered for indoor and dry-location environments. With its ultra-high Colour Rendering Index (CRI) and exceptional lumen output, it delivers superior light quality ideal for museums, galleries, and other applications requiring precise colour accuracy.
Designed for compatibility with PMMA and glass fiber optic systems, the FL 1050 B-2 provides flicker-free performance, smooth dimming, and stable illumination. It supports multiple control interfaces, including 0/1–10 V, PWM, DMX, DALI/DALI-2, D4i, Casambi, Zigbee, and Potentiometer, offering enhanced flexibility and seamless integration with modern lighting control systems.
Available in Warm, Neutral, Cool White, and Tunable White, the FL 1050 B-2 can also be custom-configured to meet specific project needs. Optional colour wheel and twinkle wheel kits can be added to create dynamic or decorative lighting effects, providing additional visual impact and versatility. With its wall-mounted design and energy-efficient performance, it is the perfect solution for demanding professional and architectural lighting applications.
| Title | Item | |
|---|---|---|
|
Dimmer Kit 0/1-10V | 01265100 |
|
Twinkle Wheel Kit - Ø100mm | 01266206 |
|
Colour Wheel Kit - 8 colours | 01266106 |
|
CTC Filter A -500K | 01261000 |
|
CTC Filter A -1200K | 01261001 |
|
CTC Filter A -900K | 01261002 |
|
Colour Filter A yellow | 01261004 |
|
Colour Filter A green | 01261005 |
|
Colour Filter A blue | 01261006 |
|
Colour Filter A red | 01261007 |
|
CTO 1/2 Filter | 01261009 |
|
CTO 1/4 Filter | 01261010 |
|
CTO 3/4 Filter | 01261011 |
|

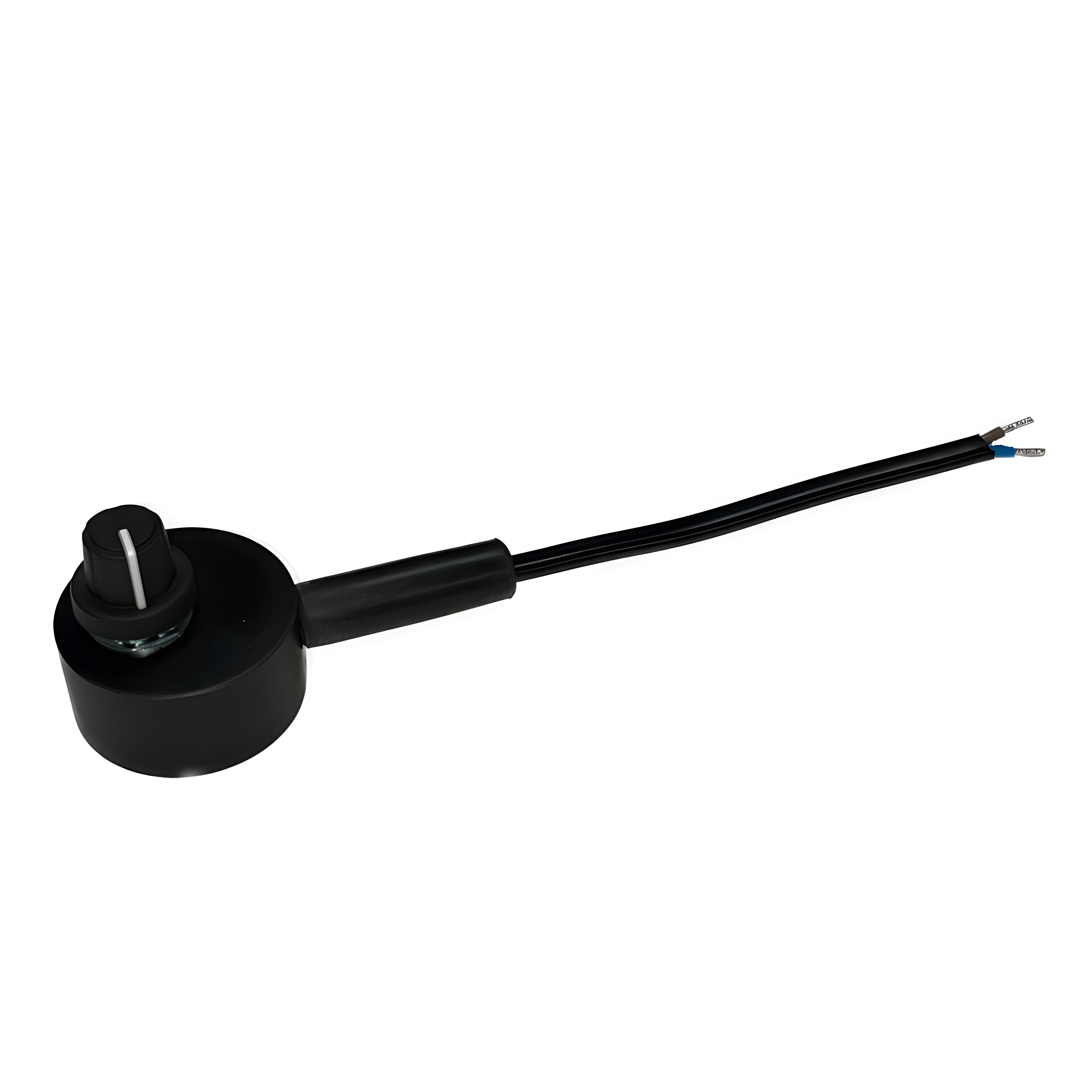

Dimmer 1-10V (potentiometer) | 01265110 |
