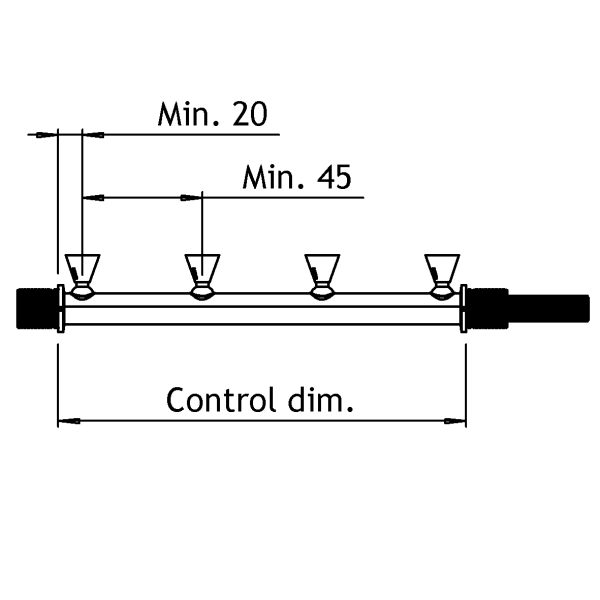

Optics Ø20 mm lens Beam angle 8° - 22° / 28° - 37° / 33°/ 54° Material Aluminium and plastic Colour Black Surface treatment Anodised Tilt 38° Rotate 360° Size Ø26 x Custom length mm Mounting Surface mounted with nut Mounting hole Ø33 mm Min. tail size Ø0.75 mm Max. tail size Ø4.5 mm Protection rating IP 20
XPO Wall to wall black Custom
One lighting system, multiple lighting solutions. Choose discreet light points to create uniform light. Choose optical heads to highlight specific objects. Or choose to combine both on one XPO conduit. Choose light beam angles, conduit finishes and lengths. Tilt fittings in multiple directions and adjust their focus as often as you want. Ideal in showcases, and for product and window displays. XPO: the surprisingly simple way to design precisely the right light. Packaging system are added to the purchase orders. See Accessories.
| Title | Item | |
|---|---|---|
|
XPO Optical Head Focus, black | 06000350 |
|
XPO Optical Head Medium, black | 06000351 |
|
XPO Optical Head Wide, black | 06000352 |
|
XPO Optical Head Wide Mini, black | 06000354 |
|
XPO Optical Head Medium Mini, black | 06000355 |
|
XPO Mounting Clips black (10 pcs) | 06000500 |
|
XPO Cover Flange, black | 06000502 |
|
XPO Cover Flange with screws, black | 06000503 |
|
XPO Cover Flange 2 Parts, black | 06000504 |
|
XPO-led mounting bracket, 10 pcs, black | 11160410 |
|
XPO Shelf Bracket, black | 06000520 |
|
XPO Shelf Bracket, 2-way, black | 06000530 |
