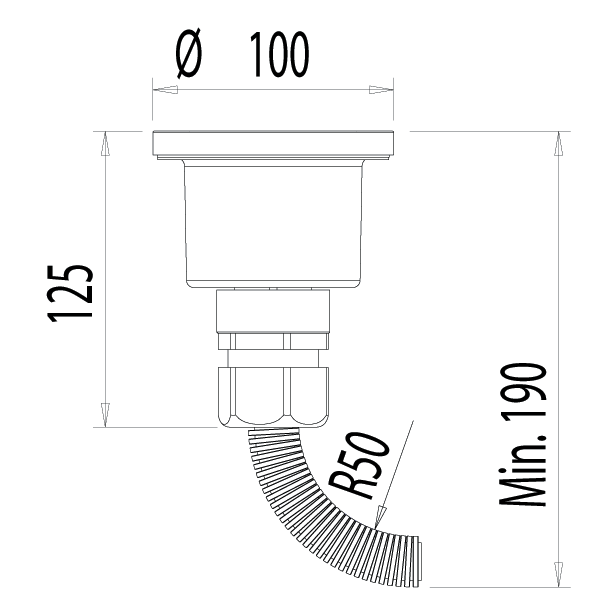

Optics Ø69 mm opal glass Beam angle 114° Material Stainless steel AISI 316 Colour White Surface treatment Pickled Rotate 360° Size Ø100 mm Weight 780 g Mounting Embedded / screw mounted Mounting hole Ø100 mm Built-in height 125 mm Min. tail size Ø8 mm Max. tail size Ø10 mm Protection rating IP 68 down to 1 m Max. dynamic load 20 J Max. static load 2,500 kg
Compass Wide Max Opal burnished
Compass Wide is an uplight in corrosion- and acid-resistant steel with clear or opal plane glass and fixed lighting angle. Compass is a sturdy recessed fitting in timeless, elegant design. Compass Wide is suitable for lighting where the light is not to be projected over long distances and where a wide light beam is required. Compass is available with plane or chamfered flange. The fitting is supplied with a white plastic insert which is available as an option in several colours.
| Title | Item | |
|---|---|---|
|
Compass Chamfered Flange polished | 03130226 |
|
Compass Chamfered Flange burnished | 03130227 |
|
Compass Embedment kit | 03130300 |
|
Compass Cementation kit | 03130301 |
|
Compass Mounting Tube | 03130302 |
|
Compas Wide/Focus Insert, Grey | 43001020 |
|
Compas Wide/Focus Insert, Green | 43001021 |
|
Compas Wide/Focus Insert, Blue | 43001022 |
|
Compas Wide/Focus Insert, Gold | 43001024 |
|
Compass Clear Glass | 54000050 |
|
Nylon Flex Hose Ø16.7 x Ø21.1 mm | 73500617 |
