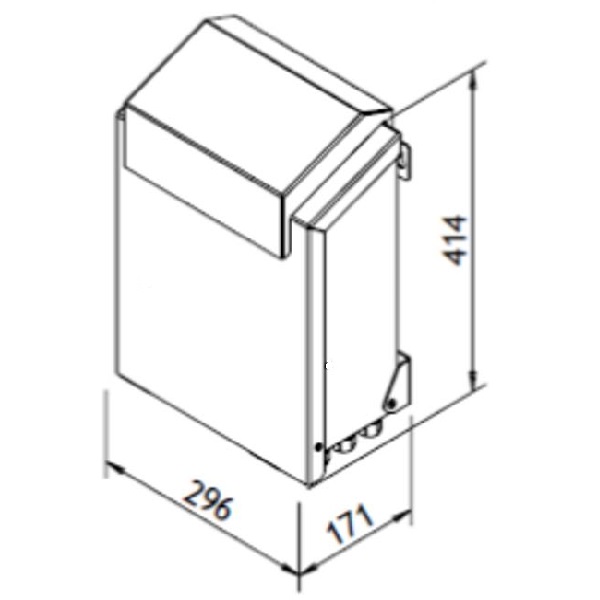

Connector size Ø28 Fiber type PMMA / Glass Size 415x305x175 mm Colour Black Supply voltage 100-240 V / 50-60 Hz Light source power 100 W Total power 115 W Main fuse Integrated auto. Power cord Cord set w/ earthed connector Data connection 3,5 mm phone/jack DALI Driver type LED Driver CC Driver life >100,000 hrs Thermal protection Integrated auto Ventilator type DC axial fan Fan noise level 30 dB(A) Fan life 40000@60°C (L90) hrs Max. ambient temperature 45 °C Min. ambient temperature -10 °C Light source LED Light source lifetime >35.000 h Light source manufacturer Nichia Light source colour temperature 3,000 K Light source CRI 90+ Lumen maintenance L 70 Operating environment Outdoor / wet locations Protection rating IP 45 Material Aluminium and plastic Weight 4 kg Surface treatment Anodised
FL 1500 XT C DMX Colour 3000K CRI 90+
Light generator designed for end lights and sidelight fibres where colour change effect is required. Typical fields of application: exterior lighting, entrances, fountains, swimming pools, indication lights and façade lighting. FL 1500 XT C DMX Colour features a DMX controlled 6-colour wheel and very smooth dimming. Additional features are instant-on and hot restrike. Twinkle wheel and dual wheel versions with colour and twinkle wheels as well as dimmable white light versions are also available. All versions are available in an indoor series.
| Title | Item | |
|---|---|---|
|
CTC filter -1000K Ø28 | 01261019 |
|
CTC filter -1200K Ø28 | 01261020 |
|
CTC filter -900K Ø28 | 01261021 |
|
CTC filter +2000K Ø28 | 01261022 |
|
CTC filter +1000K Ø28 | 01261023 |
|
FL 1500 XT filter holder | 49001530 |
|
Adaptor Ø28/Ø9 | 78000130 |
|
DMX line termination, XLR male | 99030065 |
|
DMX Controller | 01600302 |
|
DMX cable 1 to 50 m from control unit | 99030060 |
|
DMX cable 10 m XLR plug for XT-2 serie | 99030063 |
|
DMX cable 10 m XLR plugs | 99030057 |
|
DMX cable 11 to 50 m for XT-2 | 99030064 |
|
DMX kabel 51-100 m XLR stik | 99030059 |
|
DMX cable 11 to 50 m XLR plugs | 99030058 |
|
DMX cable 5 m for XT-2 | 99030062 |
|
DMX cable 2.5 m for XT-2 | 99030061 |
|
DMX cable per metre | 99030055 |
|
DMX cable 5 m XLR plugs | 99030052 |
|
DMX cable 2.5 m XLR plugs | 99030056 |
|
DMX 512 splitter | 01600310 |
|
Casambi to DMX | 80000031 |
